Plotting Functions

The georeader.plot module provides matplotlib visualization functions for working with geospatial data, particularly with GeoTensor objects. These functions build on matplotlib to provide convenient ways to visualize raster data with appropriate geographic context.

plot.show

This function displays geospatial data on a matplotlib axis. It's a wrapper around matplotlib's imshow function that handles GeoData objects properly, respecting their coordinate systems.

Features: * Automatically handles the extent based on the data's bounds * Optional colorbar display * Optional scale bar showing geographic scale * Can display coordinates in lat/long format * Handles masking of no-data values

Example:

import matplotlib.pyplot as plt
from georeader import plot

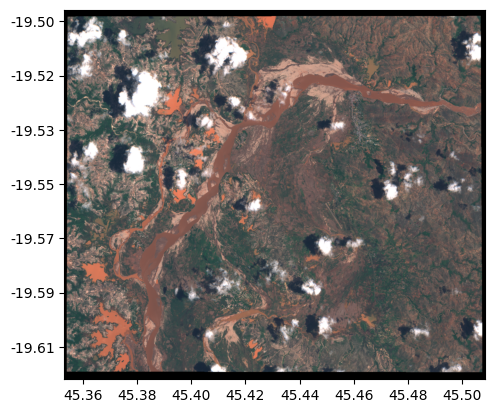

# Display RGB data (3-band image)
rgb = (s2img[[3,2,1]] / 3_500).clip(0,1)
plot.show(rgb)

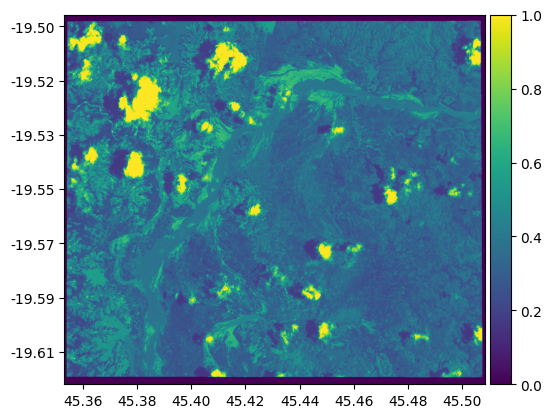

# With colorbar
greyimg = np.mean(rgb, axis=0)
plot.show(greyimg, add_colorbar_next_to=True)

plot.plot_segmentation_mask

This function visualizes discrete segmentation masks (like land cover classifications) with appropriate colors and legend.

Features: * Customizable color mapping for different classes * Optional legend with class names * Works with both numeric and categorical data

Example:

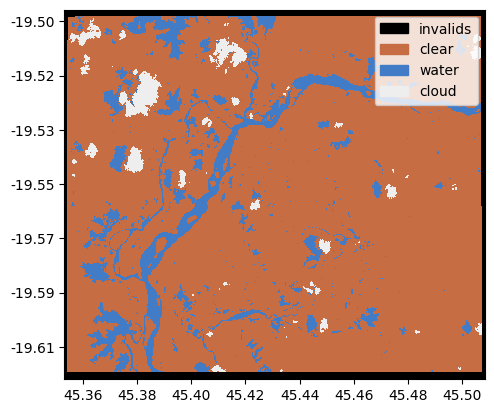

# Create a land/water/cloud mask
water = mndwi < 0
land_water_clouds = GeoTensor(np.ones(clouds.shape, dtype=np.uint8),
                              fill_value_default=0,
                              crs=clouds.crs,
                              transform=clouds.transform)

land_water_clouds[water] = 2
land_water_clouds[clouds] = 3
land_water_clouds[invalids] = 0

plot.plot_segmentation_mask(land_water_clouds,
                           interpretation_array=["invalids","clear","water","cloud"],
                           color_array=["#000000","#c66d43","#437cc6","#eeeeee"])

plot.add_shape_to_plot

This function adds vector data (like points, lines, polygons) to an existing map.

Features: * Works with GeoDataFrame, individual geometries, or lists of geometries * Handles coordinate system transformations * Customizable styling options * Can plot polygon outlines only

Example:

from georeader import plot
from shapely.geometry import box

# Create a plot with raster data
ax = plot.show(rgb)
bbox = box(45.43, -19.53, 45.45, -19.58)

plot.add_shape_to_plot(bbox, ax=ax, polygon_no_fill=True,
                       crs_plot=rgb.crs,
                       crs_shape="EPSG:4326",
                       kwargs_geopandas_plot={"color": "red"})

API Reference

show(data, add_colorbar_next_to=False, add_scalebar=False, kwargs_scalebar=None, mask=False, bounds_in_latlng=True, **kwargs)

Wrapper around rasterio.plot.show for GeoData objects. It adds options to add a colorbar next to the plot and a scalebar showing the geographic scale.

Parameters:

Name	Type	Description	Default
data	GeoData	GeoData object to plot with imshow	required
add_colorbar_next_to	bool	Defaults to False. Add a colorbar next to the plot	False
add_scalebar	bool	Defaults to False. Add a scalebar to the plot	False
kwargs_scalebar	Optional[dict]	Defaults to None. Keyword arguments for the scalebar.	None
See	https	//github.com/ppinard/matplotlib-scalebar. (install with pip install matplotlib-scalebar)	required
mask	Union[bool, array]	Defaults to False. Mask to apply to the data. If True, the fill_value_default of the GeoData is used.	False
bounds_in_latlng	bool	Defaults to True. If True, the x and y ticks are shown in latlng.	True
**kwargs		Keyword arguments for imshow	{}

Returns:

Type	Description
Axes	plt.Axes: image object

Source code in georeader/plot.py

def show(data:GeoData, add_colorbar_next_to:bool=False,
         add_scalebar:bool=False,
         kwargs_scalebar:Optional[dict]=None,
         mask:Union[bool,np.array]= False, bounds_in_latlng:bool=True,
           **kwargs) -> plt.Axes:
    """
    Wrapper around rasterio.plot.show for GeoData objects. It adds options to add a colorbar next to the plot
    and a scalebar showing the geographic scale.

    Args:
        data (GeoData): GeoData object to plot with imshow
        add_colorbar_next_to (bool, optional): Defaults to False. Add a colorbar next to the plot
        add_scalebar (bool, optional): Defaults to False. Add a scalebar to the plot
        kwargs_scalebar (Optional[dict], optional): Defaults to None. Keyword arguments for the scalebar.
        See https://github.com/ppinard/matplotlib-scalebar. (install with pip install matplotlib-scalebar)
        mask (Union[bool,np.array], optional): Defaults to False. Mask to apply to the data.
            If True, the fill_value_default of the GeoData is used.
        bounds_in_latlng (bool, optional): Defaults to True. If True, the x and y ticks are shown in latlng.
        **kwargs: Keyword arguments for imshow

    Returns:
        plt.Axes: image object
    """
    if "ax" in kwargs:
        ax = kwargs.pop("ax")
        if ax is None:
            ax = plt.gca()
    else:
        ax = plt.gca()

    if isinstance(mask, bool):
        if mask:
            mask = data.values == data.fill_value_default
            np_data = np.ma.masked_array(data.values, mask=mask)
        else:
            mask = None
            np_data = data.values
    else:
        np_data = np.ma.masked_array(data.values, mask=mask)

    if len(np_data.shape) == 3:
        if np_data.shape[0] == 1:
            np_data = np_data[0]
        else:
            np_data = np_data.transpose(1, 2, 0)

            if mask is not None:
                assert len(mask.shape) in (2, 3), f"mask must be 2D or 3D found shape: {mask.shape}"
                if len(mask.shape) == 3:
                    mask = np.any(mask, axis=0)

                # Convert np_data to RGBA using mask as alpha channel.
                np_data = np.concatenate([np_data, ~mask[..., None]], axis=-1)

    # https://matplotlib.org/stable/users/explain/artists/imshow_extent.html
    if data.transform.is_rectilinear:
        ul_x, ul_y = data.transform * (0, 0)
        lr_x, lr_y = data.transform * (data.shape[-1], data.shape[-2])
    else:
        # bounds takes the minimum and maximum of the 4 corners of the image
        xmin, ymin, xmax, ymax = data.bounds
        ul_x = xmin
        ul_y = ymax
        lr_x = xmax
        lr_y = ymin
        warnings.warn("The transform is not rectilinear. The x and y ticks and the scale bar are not going to be correct."
                      " To discard this warning use: warnings.filterwarnings('ignore', message='The transform is not rectilinear.')")

    # kwargs['extent'] = (bounds.left, bounds.right, bounds.bottom, bounds.top)
    kwargs['extent'] = (ul_x, lr_x, lr_y, ul_y)


    title = None
    if "title" in kwargs:
        title = kwargs.pop("title")

    ax.imshow(np_data, **kwargs)

    if title is not None:
        ax.set_title(title)

    if add_colorbar_next_to:
        im = ax.images[-1]
        colorbar_next_to(im, ax)

    if add_scalebar:
        try:
             from matplotlib_scalebar.scalebar import ScaleBar
        except ImportError as e:
            raise ImportError("Install matplotlib-scalebar to use scalebar"
                              "pip install matplotlib-scalebar"
                              f"{e}")

        if kwargs_scalebar is None:
            kwargs_scalebar = {"dx":1}
        if "dx" not in kwargs_scalebar:
            kwargs_scalebar["dx"] = 1
        ax.add_artist(ScaleBar(**kwargs_scalebar))

    if bounds_in_latlng:
        from matplotlib.ticker import FuncFormatter

        @FuncFormatter
        def x_formatter(x, pos):
            # transform x,ymin to latlng
            longs, lats = rasterio.warp.transform(data.crs, "epsg:4326", [x], [lr_y])
            return f"{longs[0]:.2f}"


        @FuncFormatter
        def y_formatter(y, pos):
            # transform xmin,y to latlng
            longs, lats = rasterio.warp.transform(data.crs, "epsg:4326", [ul_x], [y])
            return f"{lats[0]:.2f}"

        ax.xaxis.set_major_formatter(x_formatter)
        ax.yaxis.set_major_formatter(y_formatter)


    return ax

plot_segmentation_mask(mask, color_array=None, interpretation_array=None, legend=True, ax=None, add_scalebar=False, kwargs_scalebar=None, min_val_mask=None, max_val_mask=None, bounds_in_latlng=True)

Plots a discrete segmentation mask with a legend.

Parameters:

Name	Type	Description	Default
mask	GeoData	(H, W) np.array with values from 0 to len(color_array)-1	required
color_array	Optional[NDArray]	colors for values 0,...,len(color_array)-1 of mask	None
interpretation_array	Optional[List[str]]	interpretation for classes 0, ..., len(color_array)-1	None
legend	bool	plot the legend	True
ax	Optional[Axes]	plt.Axes to plot	None
add_scalebar	bool	Defaults to False. Add a scalebar to the plot	False
kwargs_scalebar	Optional[dict]	Defaults to None. Keyword arguments for the scalebar.	None
See	https	//github.com/ppinard/matplotlib-scalebar. (install with pip install matplotlib-scalebar)	required
bounds_in_latlng	bool	Defaults to True. If True, the x and y ticks are shown in latlng.	True

Returns:

Type	Description
Axes	plt.Axes

Source code in georeader/plot.py

def plot_segmentation_mask(mask:GeoData, color_array:Optional[NDArray]=None,
                           interpretation_array:Optional[List[str]]=None,
                           legend:bool=True, ax:Optional[plt.Axes]=None,
                           add_scalebar:bool=False,
                           kwargs_scalebar:Optional[dict]=None,
                           min_val_mask:Optional[int]=None,
                           max_val_mask:Optional[int]=None,
                           bounds_in_latlng:bool=True) -> plt.Axes:
    """
    Plots a discrete segmentation mask with a legend.

    Args:
        mask: (H, W) np.array with values from 0 to len(color_array)-1
        color_array: colors for values 0,...,len(color_array)-1 of mask
        interpretation_array: interpretation for classes 0, ..., len(color_array)-1
        legend: plot the legend
        ax: plt.Axes to plot
        add_scalebar (bool, optional): Defaults to False. Add a scalebar to the plot
        kwargs_scalebar (Optional[dict], optional): Defaults to None. Keyword arguments for the scalebar.
        See https://github.com/ppinard/matplotlib-scalebar. (install with pip install matplotlib-scalebar)
        bounds_in_latlng (bool, optional): Defaults to True. If True, the x and y ticks are shown in latlng.

    Returns:
        plt.Axes

    """
    if color_array is None:
        if interpretation_array is not None:
            nlabels = len(interpretation_array)
        else:
            nlabels = len(np.unique(mask))
            min_val_mask = np.min(mask)
            max_val_mask = np.max(mask) + 1

        color_array = plt.cm.tab20.colors[:nlabels]

    cmap_categorical = colors.ListedColormap(color_array)
    color_array = np.array(color_array)
    if min_val_mask is None:
        min_val_mask = 0
    if max_val_mask is None:
        max_val_mask = color_array.shape[0]

    assert (max_val_mask - min_val_mask) == color_array.shape[0], f"max_val_mask - min_val_mask must be equal to the number of colors {max_val_mask} - {min_val_mask} != {color_array.shape[0]}"

    norm_categorical = colors.Normalize(vmin=min_val_mask -.5,
                                        vmax=max_val_mask - .5)


    if interpretation_array is not None:
        assert len(interpretation_array) == color_array.shape[
            0], f"Different numbers of colors and interpretation {len(interpretation_array)} {color_array.shape[0]}"


    ax = show(mask, ax=ax,
              cmap=cmap_categorical, norm=norm_categorical,
              interpolation='nearest', add_scalebar=add_scalebar,
              kwargs_scalebar=kwargs_scalebar, bounds_in_latlng=bounds_in_latlng)

    if legend:
        if interpretation_array is None:
            interpretation_array = [str(i) for i in range(color_array.shape[0])]
        patches = []
        for c, interp in zip(color_array, interpretation_array):
            patches.append(mpatches.Patch(color=c, label=interp))

        ax.legend(handles=patches,
                  loc='upper right')

    return ax

add_shape_to_plot(shape, ax=None, crs_plot=None, crs_shape=None, polygon_no_fill=False, kwargs_geopandas_plot=None, title=None)

Adds a shape to a plot. It uses geopandas.plot.

Parameters:

Name	Type	Description	Default
shape	Union[GeoDataFrame, List[BaseGeometry], BaseGeometry]	geodata to plot	required
ax	Optional[Axes]	Defaults to None. Axes to plot the shape	None
crs_plot	Optional[Any]	Defaults to None. crs to plot the shape. If None, the crs of the shape is used.	None
crs_shape	Optional[Any]	Defaults to None. crs of the shape. If None, the crs of the plot is used.	None
polygon_no_fill	bool	If True, the polygons are plotted without fill.	False
kwargs_geopandas_plot	Optional[Any]	Defaults to None. Keyword arguments for geopandas.plot	None
title	Optional[str]	Defaults to None. Title of the plot.	None

Returns:

Type	Description
Axes	plt.Axes:

Source code in georeader/plot.py

def add_shape_to_plot(shape:Union[gpd.GeoDataFrame, List[Geometry], Geometry], ax:Optional[plt.Axes]=None,
                      crs_plot:Optional[Any]=None,
                      crs_shape:Optional[Any]=None,
                      polygon_no_fill:bool=False,
                      kwargs_geopandas_plot:Optional[Any]=None,
                      title:Optional[str]=None) -> plt.Axes:
    """
    Adds a shape to a plot. It uses geopandas.plot.

    Args:
        shape (Union[gpd.GeoDataFrame, List[Geometry], Geometry]): geodata to plot
        ax (Optional[plt.Axes], optional): Defaults to None. Axes to plot the shape
        crs_plot (Optional[Any], optional): Defaults to None. crs to plot the shape. If None, the crs of the shape is used.
        crs_shape (Optional[Any], optional): Defaults to None. crs of the shape. If None, the crs of the plot is used.
        polygon_no_fill: If True, the polygons are plotted without fill.
        kwargs_geopandas_plot (Optional[Any], optional): Defaults to None. Keyword arguments for geopandas.plot
        title (Optional[str], optional): Defaults to None. Title of the plot.

    Returns:
        plt.Axes:
    """
    if not isinstance(shape, gpd.GeoDataFrame):
        if isinstance(shape, Geometry):
            shape = [shape]
        shape = gpd.GeoDataFrame(geometry=shape,crs=crs_shape if crs_shape is not None else crs_plot)

    if crs_plot is not None:
        shape = shape.to_crs(crs_plot)

    # if color is not None:
    #     if not isinstance(color, str):
    #         assert len(color) == shape.shape[0], "The length of color array must be the same as the number of shapes"

    #     color = pd.Series(color, index=shape.index)

    if ax is None:
        ax = plt.gca()

    if kwargs_geopandas_plot is None:
        kwargs_geopandas_plot = {}

    if polygon_no_fill:
        shape.boundary.plot(ax=ax, **kwargs_geopandas_plot)
    else:
        shape.plot(ax=ax, **kwargs_geopandas_plot)

    if title is not None:
        ax.set_title(title)

    # if legend and color is not None:
    #     color_unique = color.unique()
    #     legend_elements = [Patch(facecolor=color_unique,  label=c) for c in color_unique]
    #     ax.legend(handles=legend_elements)

    return ax
